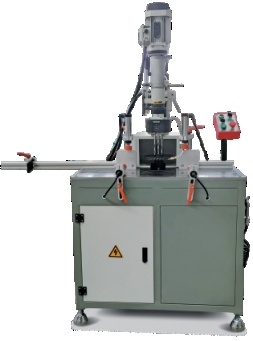

Aluminum Casement Window Vertical Box Locking Machine
Model No.: SHJ-02
Brand:HH
Place of Origin: China，Shandong
Payment Type: LC, T/T
Incoterm: FOB, CFR, CIF, EXW
Min Order: 1 Set/Sets
Port: Qingdao, Shanghai, Tianjin
In the world of architectural aluminum, speed, precision, and durability are everything. The Aluminum Casement Window Vertical Box Locking Machine is an essential tool for any professional window and door fabricator aiming to streamline production, increase output, and ensure flawless lock installation on casement windows.
Built for high-performance industrial use, the Aluminum Casement Window Vertical Box Locking Machine provides automated, accurate, and clean punching and drilling operations, making it the preferred choice of manufacturers who value speed without compromising quality.
What Is an Aluminum Casement Window Vertical Box Locking Machine?
The Aluminum Casement Window Vertical Box Locking Machine is a precision equipment designed to process aluminum casement windows by creating perfect box holes and lock slots for hardware installation. With a vertical structure and pneumatic control, this machine allows for multi-point locking systems to be embedded quickly and precisely—critical for security and operability in modern window systems.
Key Features
?️ High-speed vertical drilling for lock boxes
? Compatible with multiple aluminum profiles
? Adjustable punching depths and positions
? Pneumatic or servo-assisted motion system
? Clean, burr-free cuts with precise alignment
?️ Optional digital control interface or CNC integration
With the Aluminum Casement Window Vertical Box Locking Machine, you can achieve up to 4x the productivity of manual operations while maintaining 0.1mm accuracy on lock box placements.
Why Choose This Machine?
1. Boosts Production Efficiency
Whether you produce 50 or 500 windows a day, this machine drastically reduces manual labor time and eliminates alignment errors. It integrates seamlessly into assembly lines or standalone workstations.
2. High-Precision Punching and Milling
Every cut counts in aluminum fabrication. This Aluminum Casement Window Vertical Box Locking Machine ensures smooth slots and perfectly aligned locking boxes, critical for long-term performance and aesthetics.
3. Versatility for Various Profiles
From 35mm to 120mm profile depths, this machine accommodates a wide range of aluminum casement window systems—making it a versatile investment whether you're using Chinese, European, or thermal-break profiles.
Applications of the Aluminum Casement Window Vertical Box Locking Machine
| Industry Segment | Use Case |
|---|---|
| Window & Door Fabrication | Lock slot creation for multi-point hardware |
| Aluminum Profile Workshops | Customized locking hole preparation |
| Construction OEMs | Mass production of casement window systems |
| Export Manufacturing | Precise hole punching for international specs |
No more manual chiseling or inaccurate drilling. The Aluminum Casement Window Vertical Box Locking Machine delivers consistent, professional results every time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Material | Aluminum alloy profiles |
| Lock Box Depth | Adjustable: 30–100mm |
| Punching Speed | 3–5 seconds per slot |
| Motor Power | 1.5–3kW (varies by model) |
| Control System | Pneumatic / Electric / Optional CNC |
| Dimensions | 1200 × 700 × 1800 mm |
| Voltage | 220V / 380V / Customized |
Customization available for European standard locks, thermal-break systems, and specialized groove formats.
Customer Reviews
“This Aluminum Casement Window Vertical Box Locking Machine cut our labor costs in half. We now punch lock boxes with precision in seconds.”
– Wei Jinlong, Factory Manager, Foshan GlassTech
“We needed consistent quality for our export windows. This machine helped us pass every international QC test.”
– Marta Romero, Aluminum Systems Exporter, Spain
How It Works
Load aluminum profile onto the clamping bed.
Adjust parameters (depth, hole position) via dial or touch screen.
Engage pneumatic punch or motor drill.
Perfect lock boxes are created within seconds.
Unload and continue production—fast, clean, repeatable.
Invest in Performance – Why This Machine Delivers ROI Fast
✅ Reduces human error by 90%
✅ Processes hundreds of profiles daily
✅ Improves end-product quality, enabling premium pricing
✅ Fits easily into modern factory workflows
✅ Compatible with global aluminum systems
For any company serious about professional-grade aluminum windows, the Aluminum Casement Window Vertical Box Locking Machine is a core investment that pays off in both productivity and product quality.
Request a Quote or Demo Today
? Need a tailored configuration for your aluminum system?
? Looking for bulk orders or OEM branding?
? Want a live demo or video walkthrough?
? Contact us now to get detailed pricing, CAD drawings, and production samples using the Aluminum Casement Window Vertical Box Locking Machine.
Product parameters are as follows
SHJ-02 | |
Power supply | 380V 50Hz |
Input power | 3.5Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 80L/min |
Shaft diameter | φ32mm |
Milling diameter | φ10~16mm |
Motor speed | 2800r/min |
Dimension | 0.75×0.75×1.8m |
Weight(about) | 300Kg |
