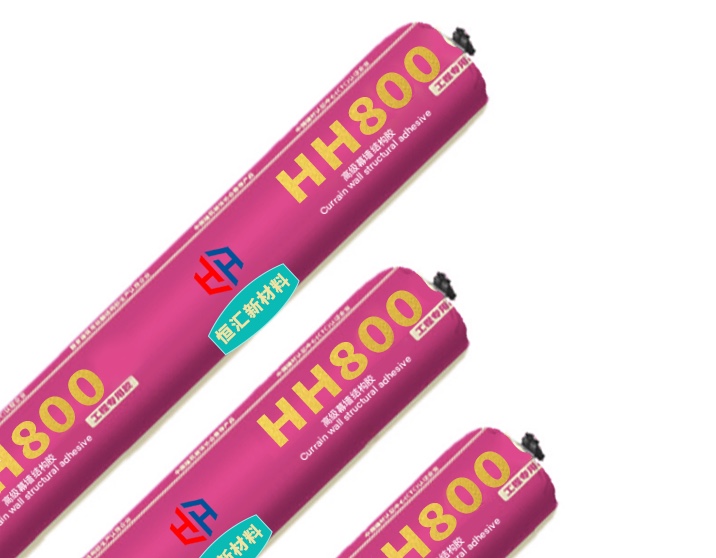

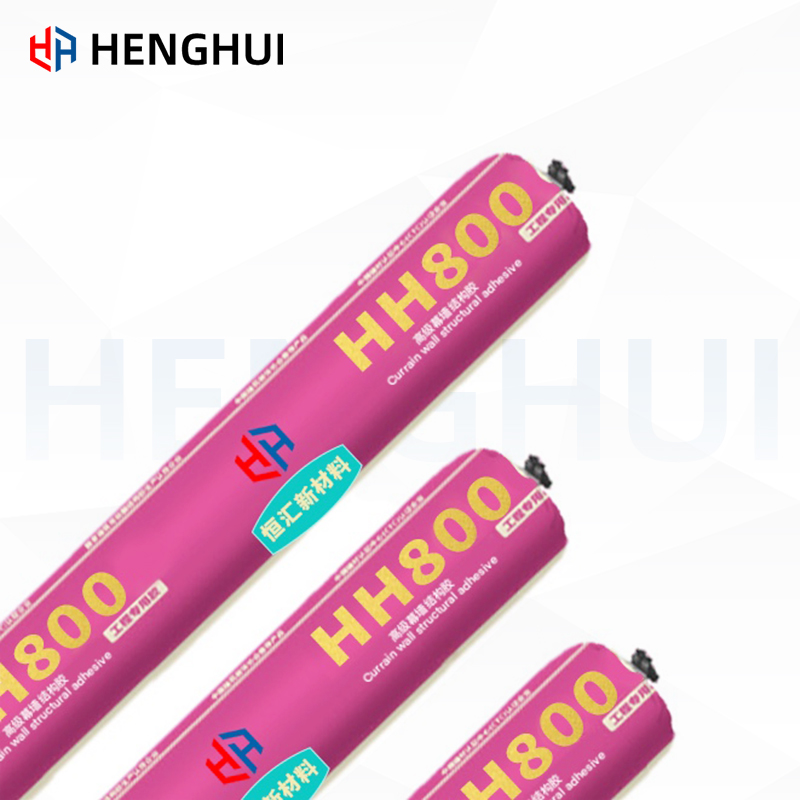

High Performance OEM Curtain Wall Structural Silicone
Model No.: HH 800
Brand: HH
Place of Origin:China
Wet: 750g/pieces
Payment Type:LC,T/T
Incoterm:FOB,CFR,CIF,EXW
Min Order:30 pieces
Port: Qingdao,Shanghai,Tianjin
1.Introduction of products
HH800 has extensive experience in insulating glass weather-resistant sealing and structural bonding. The products have been strictly tested and comply with national and industry standards. They have better strength, flexibility, and temperature and aging resistance, providing reliable, customized and innovative products. Insulated glass sealing solutions
2.Product advantages
(1) Efficient extrusion, improving production efficiency during the installation process
(2) Excellent thermal insulation performance, reducing heat transfer indoors and outdoors
(3) Good mechanical properties, even under harsh temperature conditions, can still ensure good adhesion between different glass layers of insulating glass
(4) Long-term aging resistance
(5) Innovative customized silicone compounds suitable for unique shape designs
(6) Safe, green and environmentally friendly, no toxic substances, ensuring the safety of construction workers and installers
3.Product parameters are as follows
Serial Number | Inspection Item | Qualification | Measured Value | Test Mode | ||
1 |
Droop | Vertical Placement,mm | ≤3 | 0 |
GB/T 13477 | |
Horizontal Placement | No Deformation | No Deformation | ||||
2 | Extrusion Sex,s | ≤10 | 4.2 | GB/T 13477 | ||
3 | Table Dry Time,h | ≤3 | 0.3 | GB/T 13477 | ||
4 | Application Period, at 20min,s | ≤10 | / | GB/T 13477 | ||
5 | Shore Hardness,Shore A | 20~60 | 47 | GB/T 531.1 | ||
6 |
Heating Ageing | Hot Weightlessness,% | ≤10 | 3.2 |
GB 16776 | |
Chap | NO | NO | ||||
Chalking | NO | NO | ||||
7 |
Stretching Bonding |
Stretch Bond Strength, MPa | 23℃ | ≥0.60 | 1.36 |
GB/T 13477 |
90℃ | ≥0.45 | 0.95 | ||||
-30℃ | ≥0.45 | 1.99 | ||||
After Soaking Water | ≥0.45 | 1.42 | ||||
Water-UV Light Exposure Behind |
≥0.45 |
1.23 | ||||
Adhesion Damage Area,% | ≤5 | 0 | ||||
at Maximum Tensile Strength at 23℃ Long Rate,% |
≥100 |
286 |

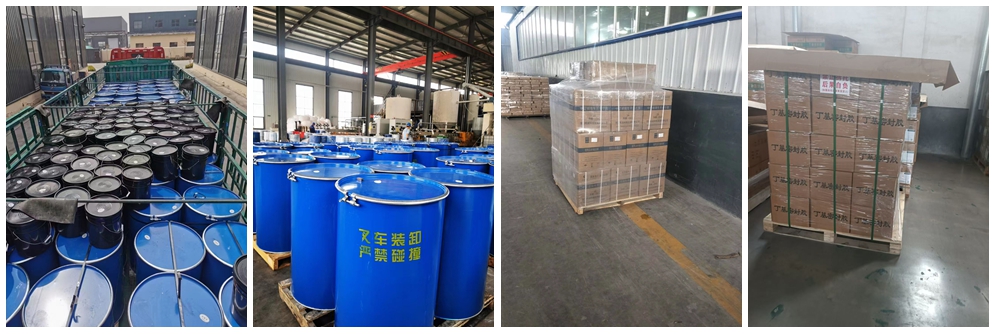

4. Transportation and Packaging

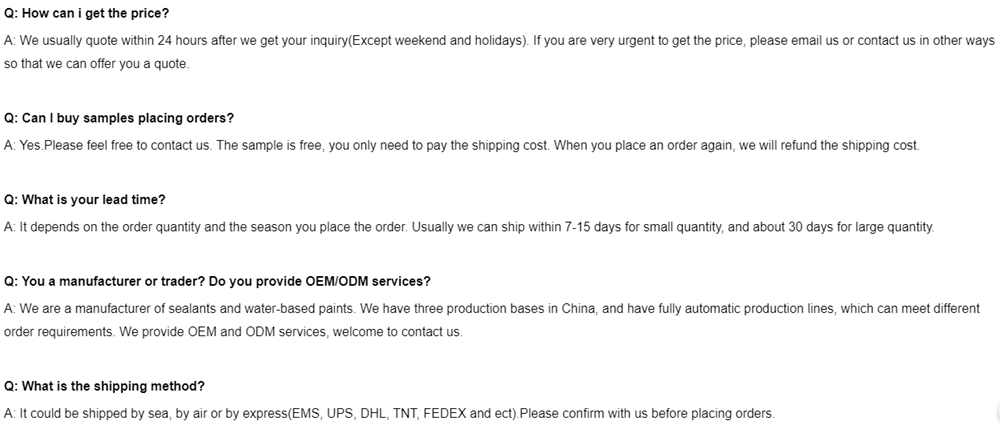

5.FAQ
