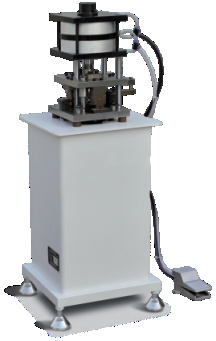

Aluminum Window 5Position Lock Hole Punching Machine
Model No.: LY-16B
Brand:HH
Place of Origin: China，Shandong
Payment Type: LC, T/T
Incoterm: FOB, CFR, CIF, EXW
Min Order: 1 Set/Sets
Port: Qingdao, Shanghai, Tianjin
When it comes to high-volume, precision punching in aluminum window manufacturing, nothing matches the performance of the Aluminum Window 5 Position Lock Hole Punching Machine. Engineered for speed, consistency, and versatility, this specialized punching machine is the ultimate solution for fabricators aiming to streamline operations and increase output quality.
What is an Aluminum Window 5 Position Lock Hole Punching Machine?
The Aluminum Window 5 Position Lock Hole Punching Machine is a precision punching tool designed to simultaneously or sequentially punch five lock holes on aluminum window profiles. It ensures perfect alignment, tight tolerances, and zero deformation, making it indispensable in modern window and door production lines.
Whether you are working with casement windows, sliding systems, or tilt-and-turn designs, this machine delivers superior performance with minimal setup time.

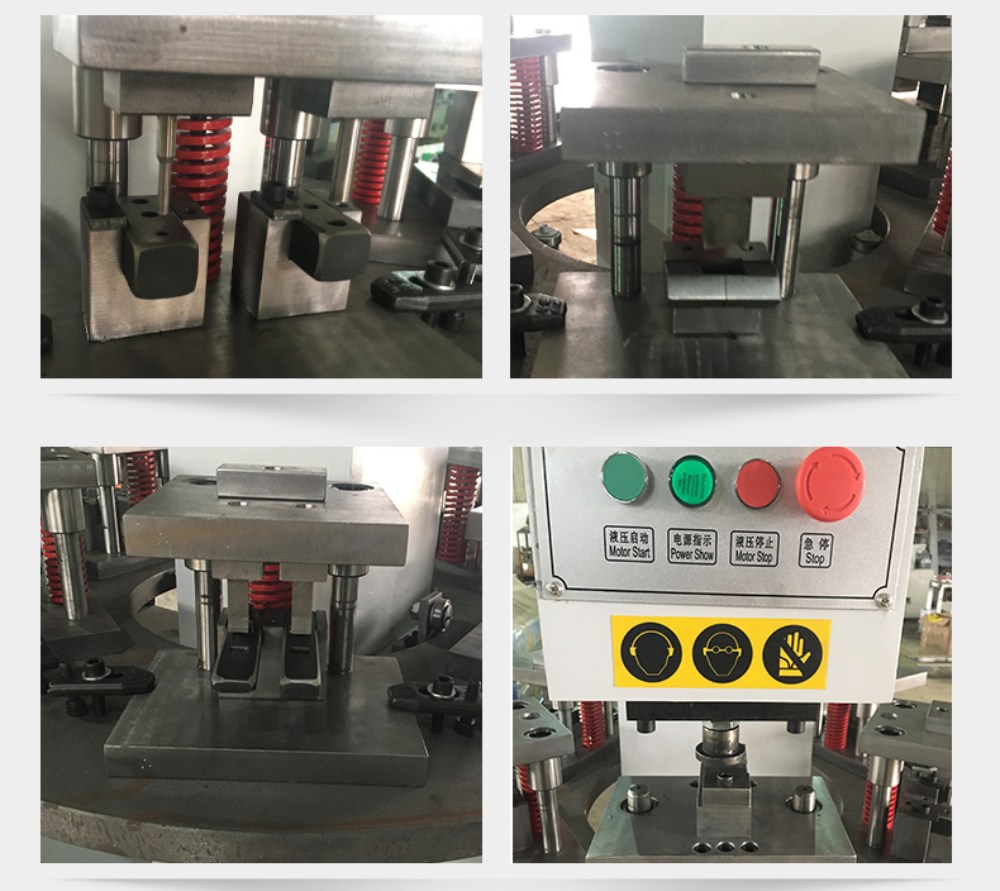

Key Features of Our Aluminum Window 5 Position Lock Hole Punching Machine
✅ Five-Point Punching in One Cycle
✅ High-Speed Pneumatic Operation
✅ Durable Carbide Punch Dies
✅ Adjustable Positioning Fixtures for Various Profile Sizes
✅ Foot Pedal Control for Hands-Free Operation
✅ Compatible with Multiple Locking Systems
Each component of the Aluminum Window 5 Position Lock Hole Punching Machine is built for heavy-duty use, with premium-grade steel construction and long-life tooling that drastically reduces downtime and maintenance costs.
Why Choose This 5 Position Lock Hole Punching Machine?
⚙️ Maximum Efficiency: Punch five lock holes in under two seconds with unmatched precision.
? Consistent Accuracy: Every punch is clean, accurate, and burr-free.
⏱️ Time-Saving Setup: Quick-change dies and adjustable jigs make switching profiles fast and easy.
? Compact Design: Space-saving structure suitable for both large factories and small workshops.
? International Standards: CE-certified and ISO-compliant for global quality assurance.
If you're in the window or facade industry, this Aluminum Window 5 Position Lock Hole Punching Machine will be your productivity game-changer.
Applications
The Aluminum Window 5 Position Lock Hole Punching Machine is ideal for:
? Residential Window Manufacturing
? Commercial Facade Systems
? Aluminum Door Lock Slotting
?️ Custom Window System Fabrication
Compatible with leading profile brands and lock hardware systems, it supports various lock types including multi-point locks, crescent locks, and mortise locks.
Technical Specifications
| Specification | Details |
|---|---|
| Punching Points | 5 Positions (Simultaneous/Sequential) |
| Power Source | Pneumatic / 220V AC (Optional) |
| Air Pressure | 0.6 – 0.8 MPa |
| Stroke Speed | ≤ 2 seconds per cycle |
| Profile Compatibility | 30mm – 100mm Width Aluminum Profiles |
| Control | Foot Pedal / Manual Trigger |
| Dimensions | 600 × 500 × 1400 mm |
| Weight | Approx. 90 kg |
Optional customization for multi-profile compatibility and non-standard punch configurations is available upon request.
After-Sales & Service Support
We don’t just sell machines—we ensure long-term success for your production line:
? Free Operation Training
? 24/7 Online Support
? Secure Export Packaging
?️ 1-Year Warranty & Spare Parts Supply
Your investment in the Aluminum Window 5 Position Lock Hole Punching Machine is backed by a professional technical team ready to assist globally.
Get a Competitive Edge Today
If you're looking to improve productivity, reduce labor intensity, and increase accuracy, the Aluminum Window 5 Position Lock Hole Punching Machine is your perfect solution. Designed for serious manufacturers who demand performance and precision, this machine will help you meet growing customer demands with confidence.
? Contact Us for Pricing & Demo Videos
? Request a Free Consultation Today
